6SM 47L-3000 by Kollmorgen
Get a Quote for 6SM 47L-3000
Request a quote or call us now at 1-919-443-0207!
In Stock, Ships Fast
We respect your privacy. Your information is safe and will never be shared.
Secure Online
Checkout
Free Ground
Shipping
One Year
Warranty

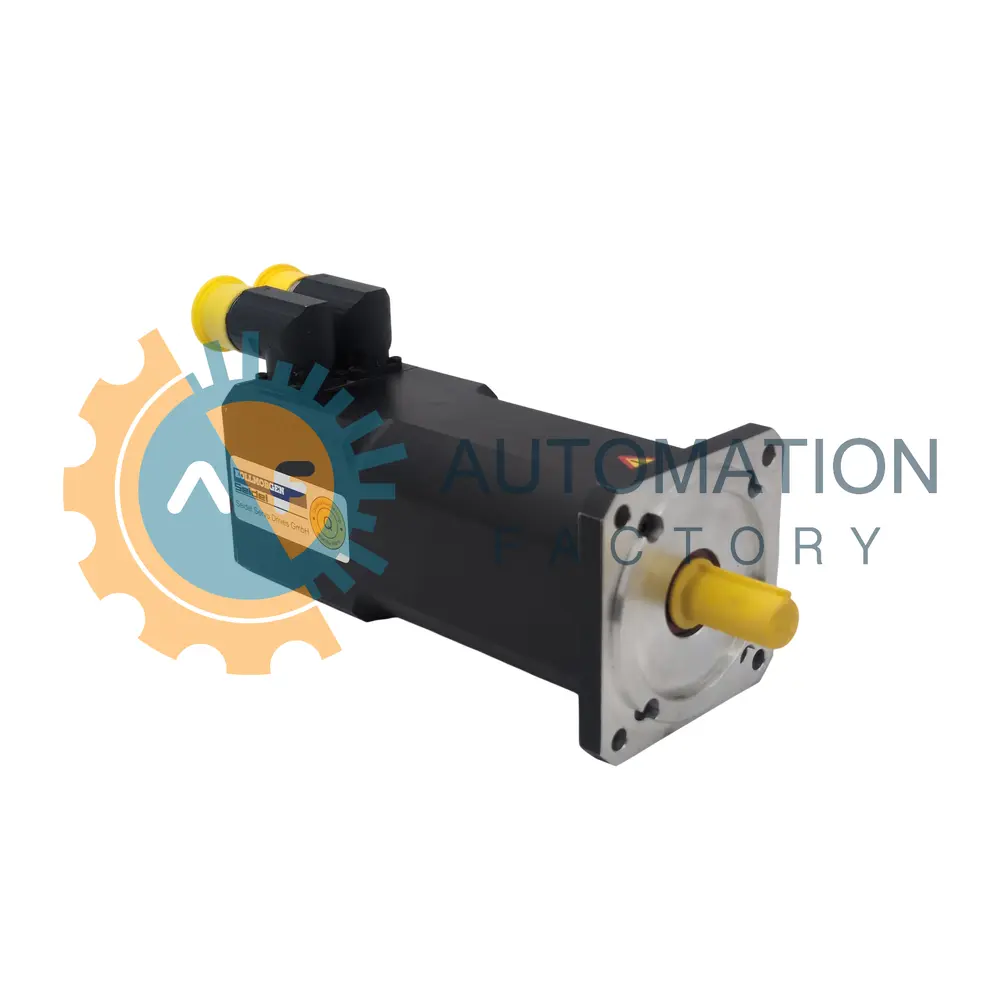

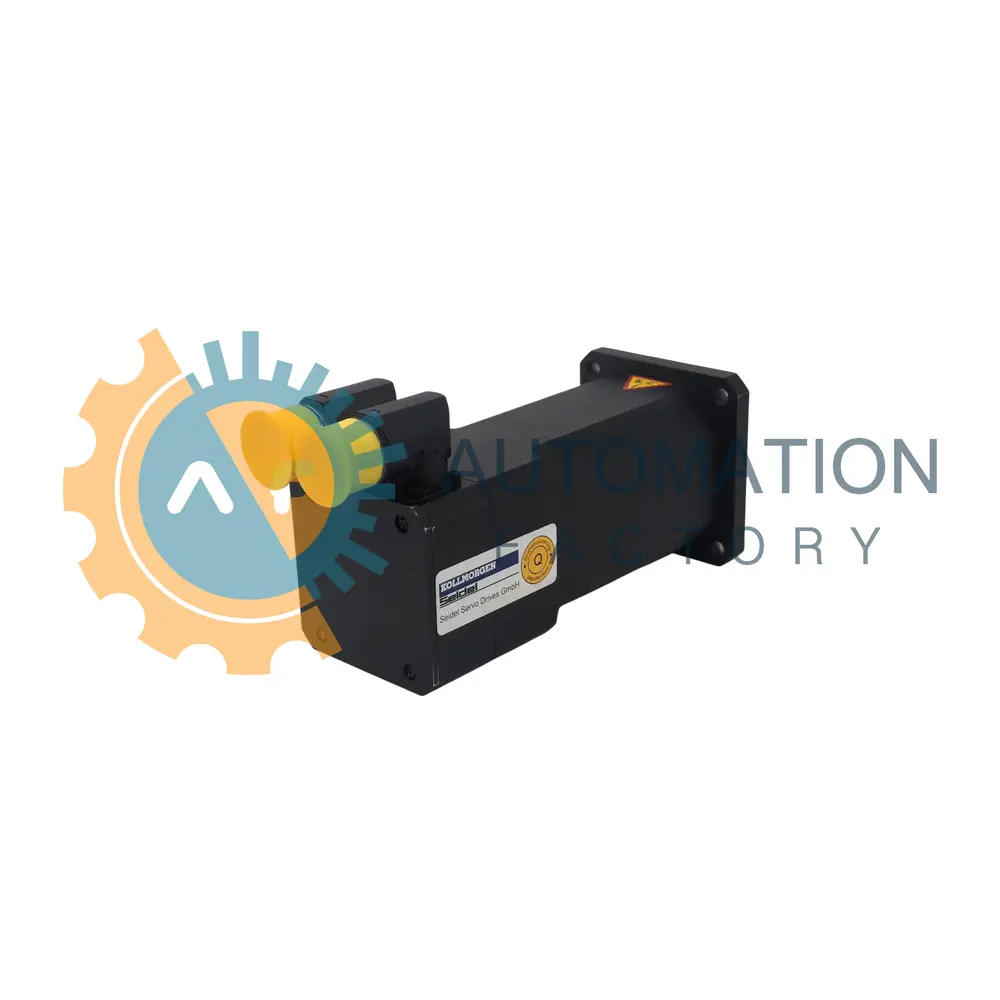

The Kollmorgen 6SM 47L-3000 is a brushless permanent magnet motor in the 6SM Synchronous Servo Motors series. It operates at 50/60 Hz, delivers 80 A, weighs 6 kg, and measures 80 x 398 x 200 mm, with a max temperature of 45°C, insulation class F for industrial automation.
Technical Specifications
Cross-section Of Conductor
25 mm²
25 mm²
Current
80 A
80 A
Dimensions
80 x 398 x 200 mm
80 x 398 x 200 mm
Emc Level
Class A
Class A
Frequency
50/60 Hz
50/60 Hz
Insulation class
F
F
Maximum Temperature
45°C
45°C
Power Loss
25 W
25 W
Rated Leakage Current
35 mA
35 mA
Rated speed
3000rpm
3000rpm
Standstill current
2.3A
2.3A
Standstill Torque
3Nm
3Nm
Torque constant
1.33Nm/A
1.33Nm/A
Voltage constant
81 V/min
81 V/min
Weight
6 kg
6 kg
