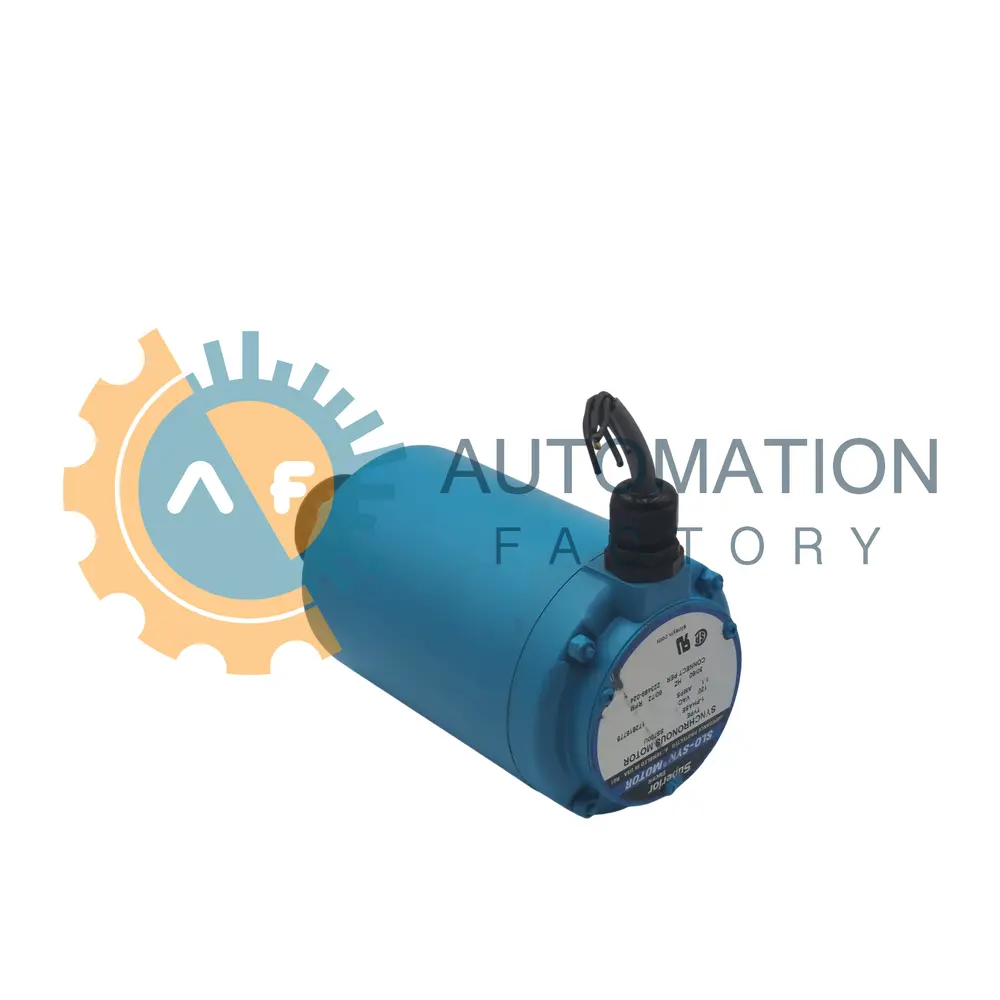

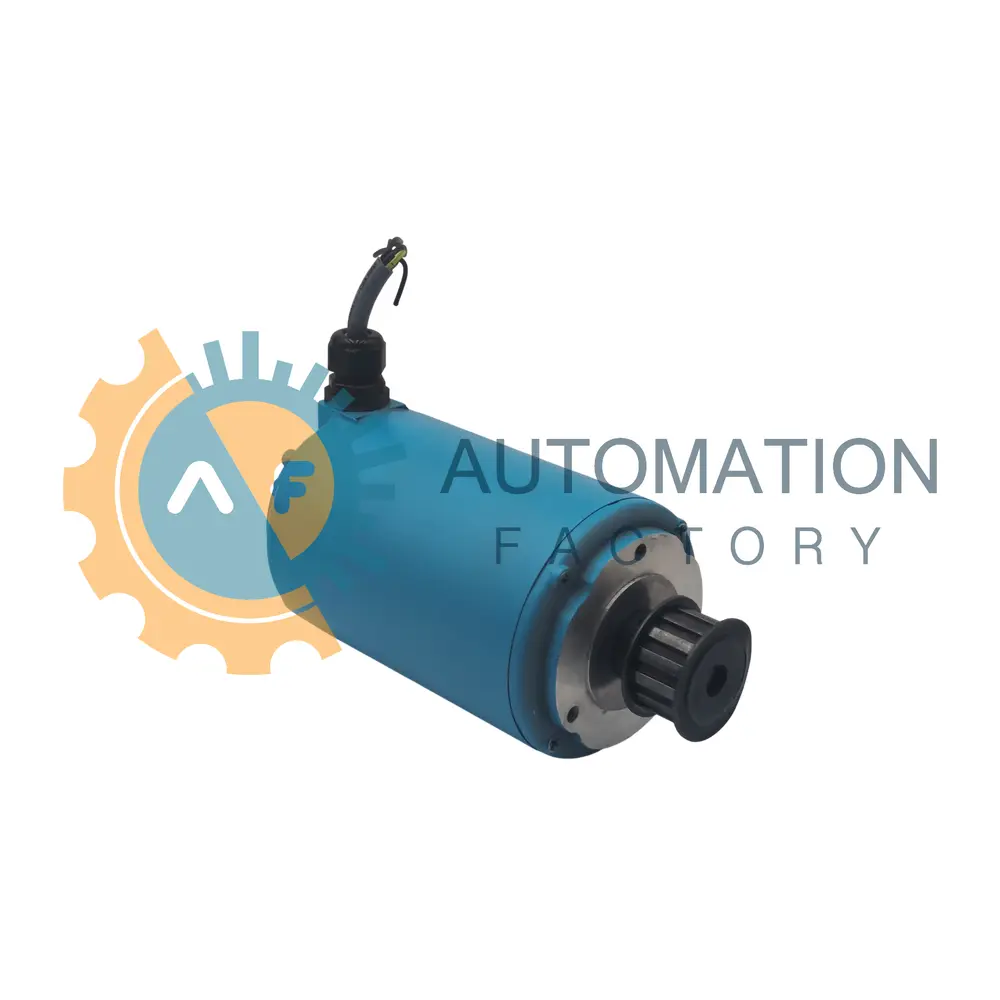

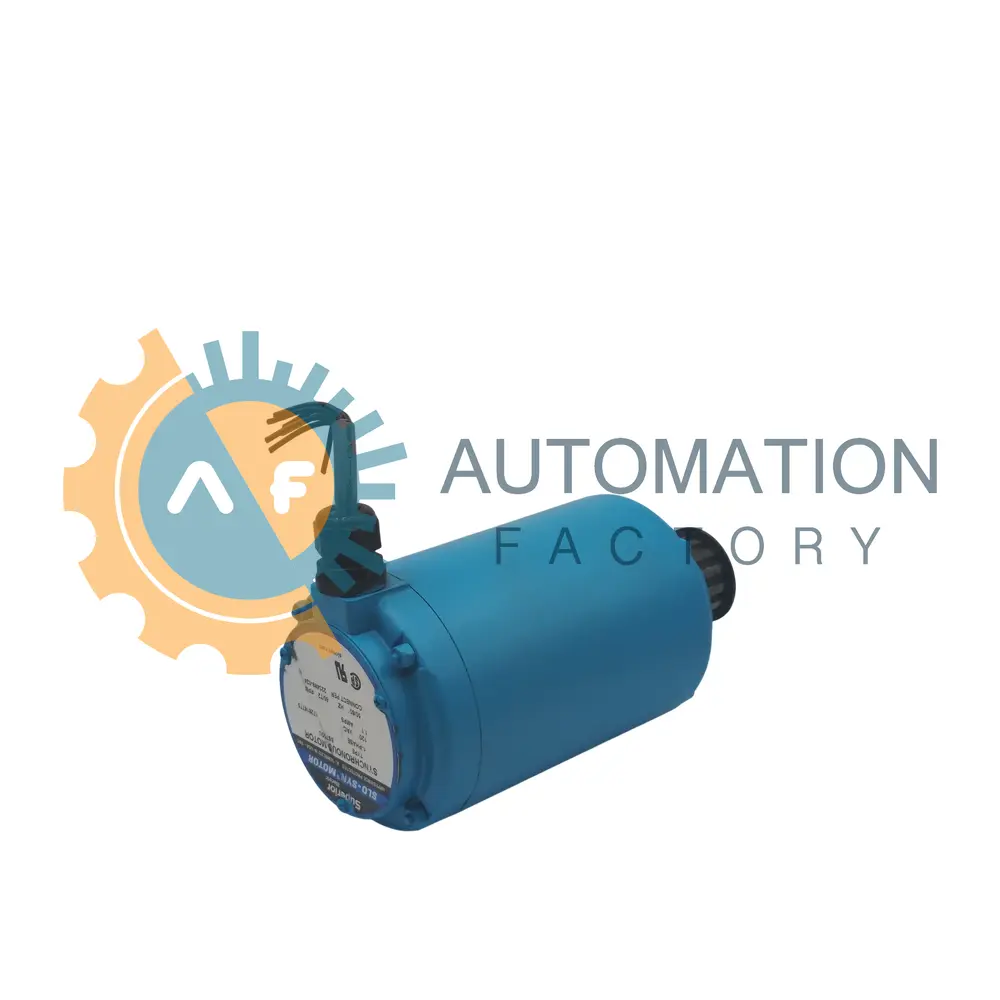

SS700U by Danaher
Get a Quote for SS700U
Request a quote or call us now at 1-919-443-0207!
In Stock, Ships Today
We respect your privacy. Your information is safe and will never be shared.
Secure Online
Checkout
Free Ground
Shipping
One Year
Warranty
The SS700U synchronous motor delivers 700 oz-in (494 N-cm) of torque, operates at 72 RPM at 60 Hz and 60 RPM at 50 Hz, features a NEMA 42 frame, and draws approximately 1.1 amps at 120 VAC. Part of the Slo-Syn Synchronous Motors series manufactured by Danaher, it carries IP42 protection and is UL Listed and CE Certified.
Technical Specifications
Connection Types
Leaded and terminal box connections
Leaded and terminal box connections
Enclosure Rating
IP42
IP42
Frame Series
Part of the Superior Electric Slo-Syn series
Part of the Superior Electric Slo-Syn series
Humidity
5-95% non-condensing
5-95% non-condensing
Insulation Rating
Class B
Class B
Load Inertia
Rated load inertia: 0.42 lb-in² (approx. 30 kg-cm²)
Rated load inertia: 0.42 lb-in² (approx. 30 kg-cm²)
Motor Current
Approximately 1.1 amps (for 120VAC version)
Approximately 1.1 amps (for 120VAC version)
Motor Torque
700 oz-in (494 N-cm)
700 oz-in (494 N-cm)
Nema Size
NEMA 42
NEMA 42
Operating Temperature
-40 to 60°C
-40 to 60°C
Phase Shifting
Utilizes R/C phase shifting network for smoother operation
Utilizes R/C phase shifting network for smoother operation
Speed
72 RPM @ 60 Hz, 60 RPM @ 50 Hz
72 RPM @ 60 Hz, 60 RPM @ 50 Hz
Storage Temperature
-40 to 130°C
-40 to 130°C
Ul And Ce Certification
UL Listed and CE Certified versions available
UL Listed and CE Certified versions available
Voltage Versions
Available in 120VAC and 240VAC
Available in 120VAC and 240VAC
