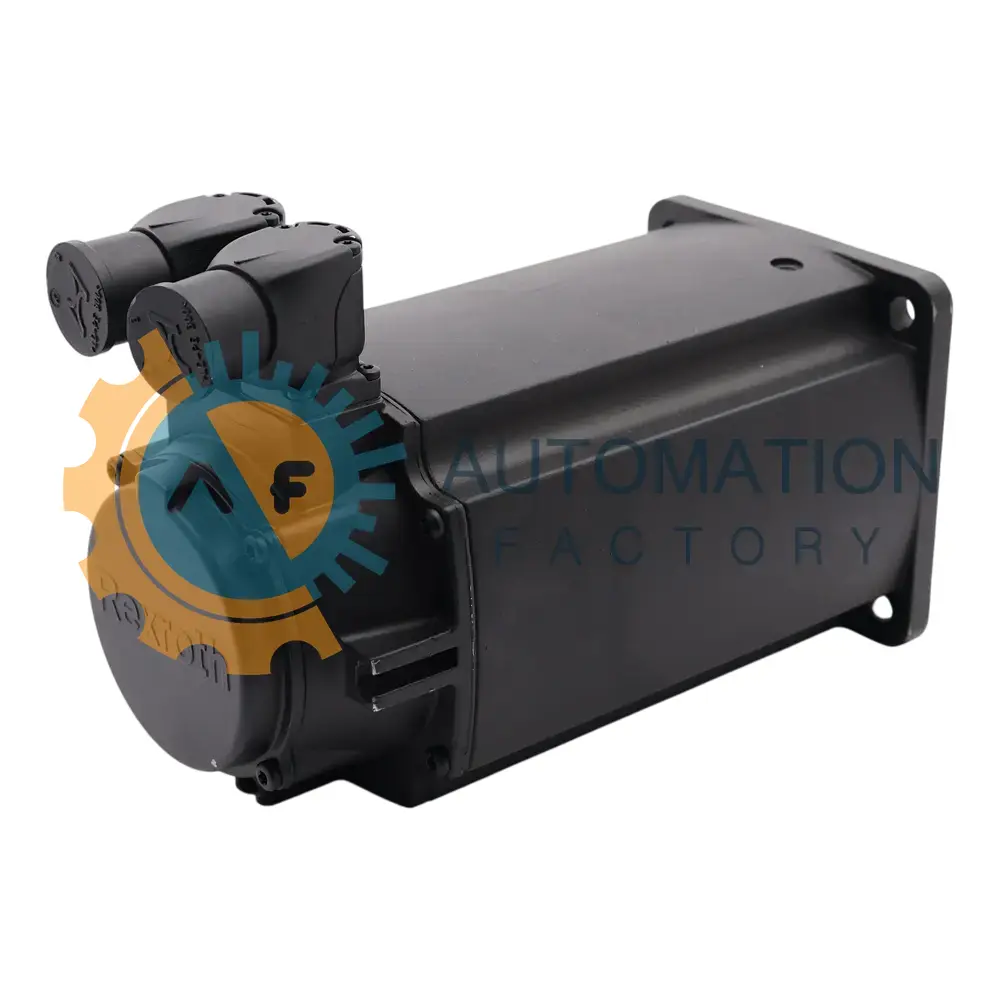

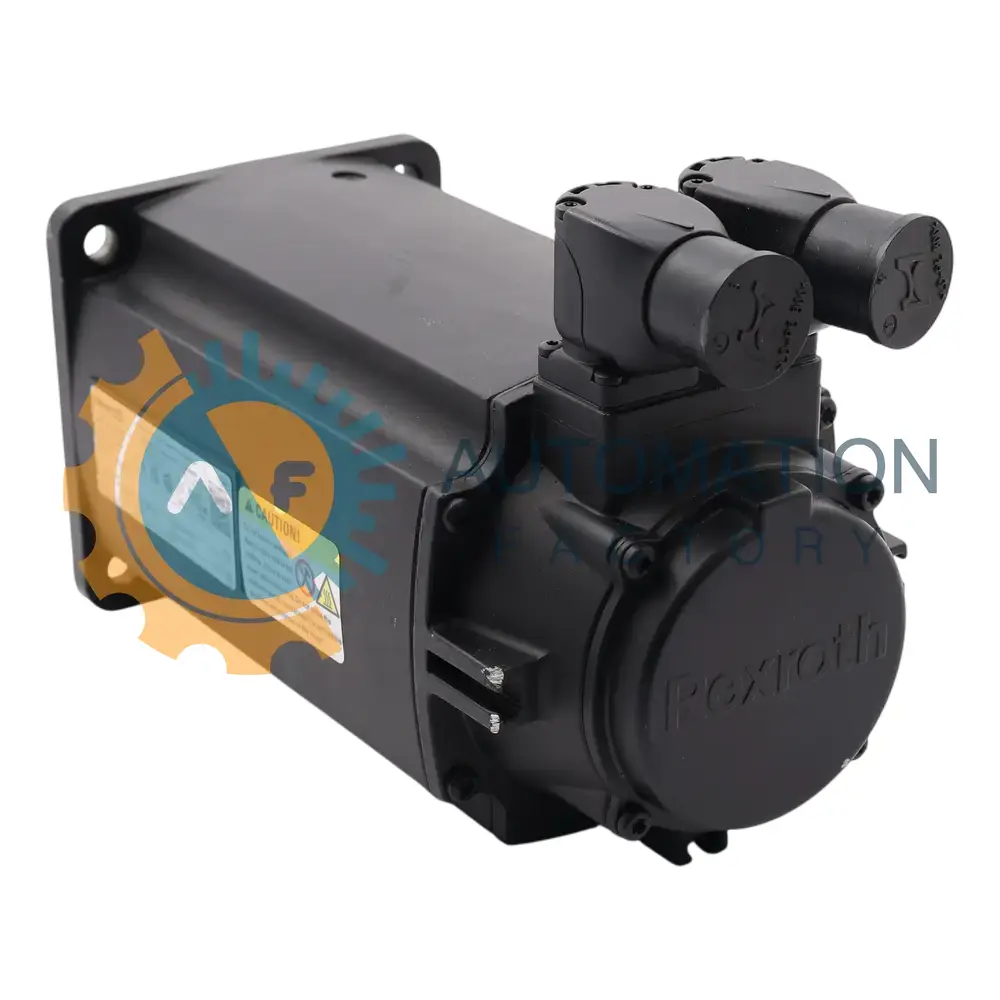

MSK060C-0600-NN-M1-UP0-RNNN by Bosch Rexroth Indramat

The MSK060C-0600-NN-M1-UP0-RNNN synchronous servo motor is manufactured by Bosch Rexroth Indramat and is part of the MSK IndraDyn S Synchronous Motors series. It converts drive-supplied current into controlled rotary motion for packaging lines, pick-and-place stages, and light machining spindles that need precise velocity and position loops. A 060 frame size keeps the footprint compact, while the length code C provides a mid-range magnetic stack so designers can balance available space against inertia and torque demands in multi-axis assemblies.

Thermal management is handled through Natural convection, so heat dissipates to the surrounding air without fans or external liquid circuits. The rotor and stator are built to Increased concentricity tolerances, which minimizes radial runout and helps maintain consistent air-gap flux. Cable routing is simplified by a feedback plug that is Rotatable, 240°, allowing the connector to swing into the best position inside tight electrical cabinets. Position data travels through the Hiperface digital interface, enabling single-cable solutions with synchronous transmission of power and feedback. Within the encoder, commutation tracks are subdivided into 128 signal periods, giving the drive fine resolution for smooth torque production at low speeds.

The encoder's sensing head uses Optical scanning for high immunity to magnetic cross-talk, and its multi-turn counting is provided by a Multiturn Absolute mechanism that preserves position over power cycles. No holding force is supplied when power is removed because the motor is delivered without a holding brake, so static loads must be secured by external means or drive torque. Mechanical power is transmitted through a Shaft with keyway, easing coupling to pulleys or rigid hubs. Electromagnetic characteristics follow winding code 0600, which aligns resistance and inductance with MSK-rated drives for rapid current rise and tight control.
