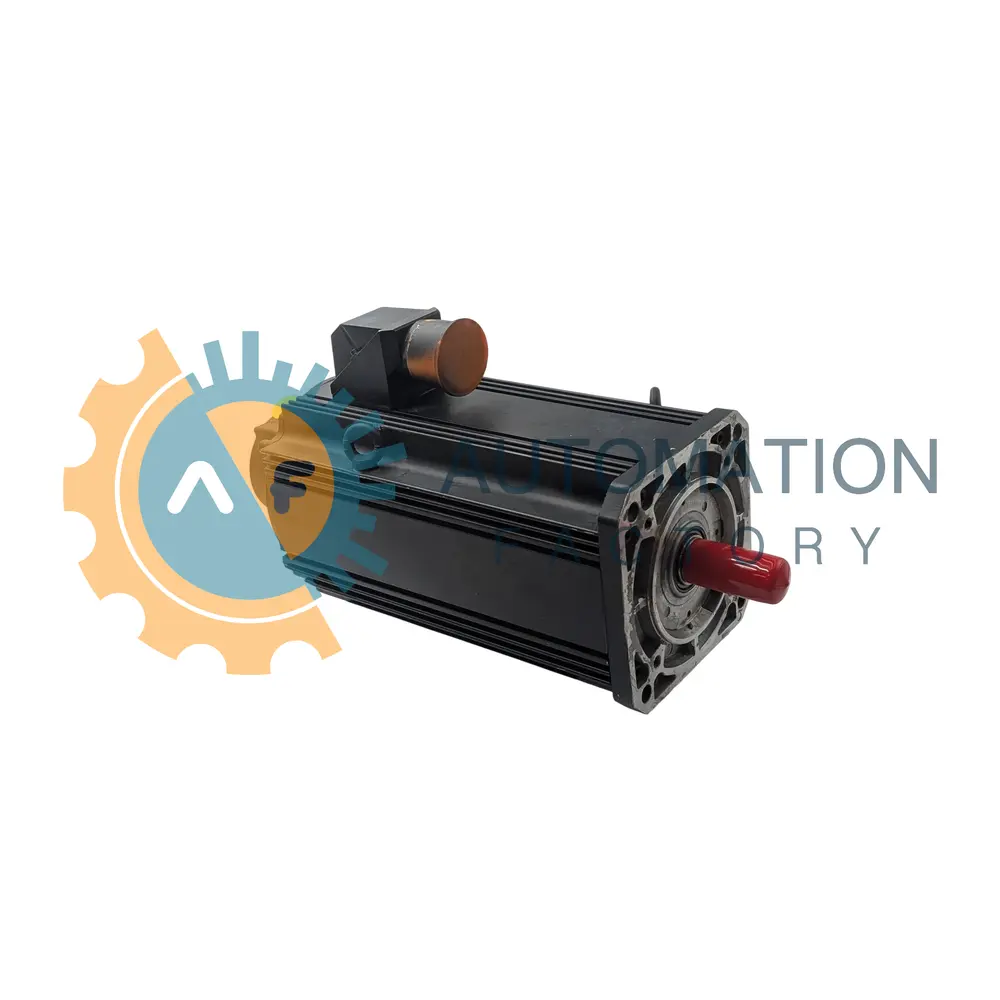

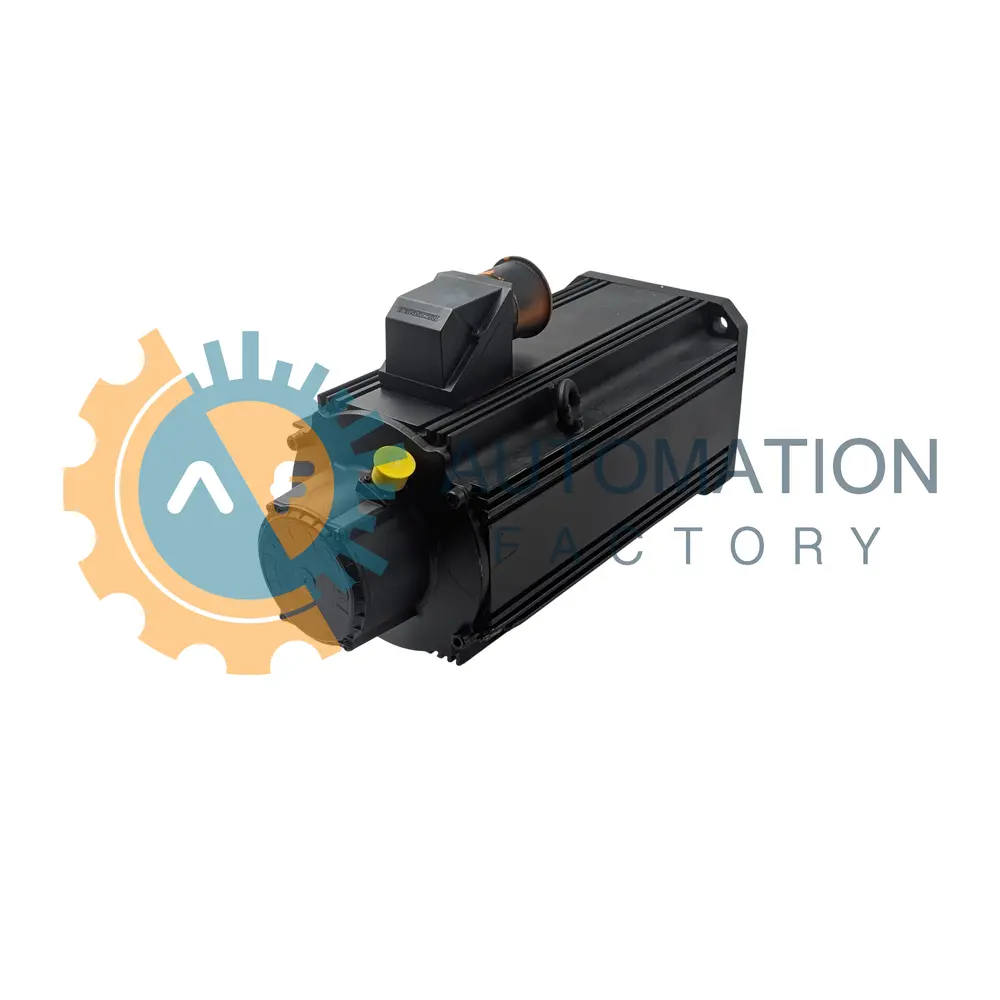

The MKD112C-058-KG0-BN motor offers a max torque of 54.00 Nm, standard cooling, and operates at a rated speed of up to 3000 RPM. As part of the MKD Synchronous Motors line by Bosch Rexroth Indramat, this motor features an inertia of 0.178 kg*m² and a rated power of 10.0 kW.
Technical Specifications
Driven Shaft
Plain Shaft
Plain Shaft
Holding Brake
Not Equipped
Not Equipped
Motor Feedback
Resolver feedback with integrated multiturn absolute encoder
Resolver feedback with integrated multiturn absolute encoder
Windings Code
058
058
Type
Synchronous Servo Motor
Synchronous Servo Motor
Cooling Method
Standard Cooling
Standard Cooling
Rated Speed
Up to 3000 RPM
Up to 3000 RPM
Max Torque
54.00 Nm
54.00 Nm
Rated Power
10.0 kW
10.0 kW
Rated Voltage
280V (DC)
280V (DC)
Rated Current
35.6 A (DC)
35.6 A (DC)
Inertia
0.178 kg*m²
0.178 kg*m²
Weight
82.0 kg
82.0 kg
Protection Class
IP65
IP65
Insulation Class
Class F
Class F
Max Radial Load
2600 N
2600 N
Max Axial Load
1900 N
1900 N
Feedback
Incremental Encoder
Incremental Encoder
