MAD100D-0200-SA-M2-AH1-05-N1 by Bosch Rexroth Indramat
Get a Quote for MAD100D-0200-SA-M2-AH1-05-N1
Request a quote or call us now at 1-919-443-0207!
Call For Quote
We respect your privacy. Your information is safe and will never be shared.
Secure Online
Checkout
Free Ground
Shipping
One Year
Warranty

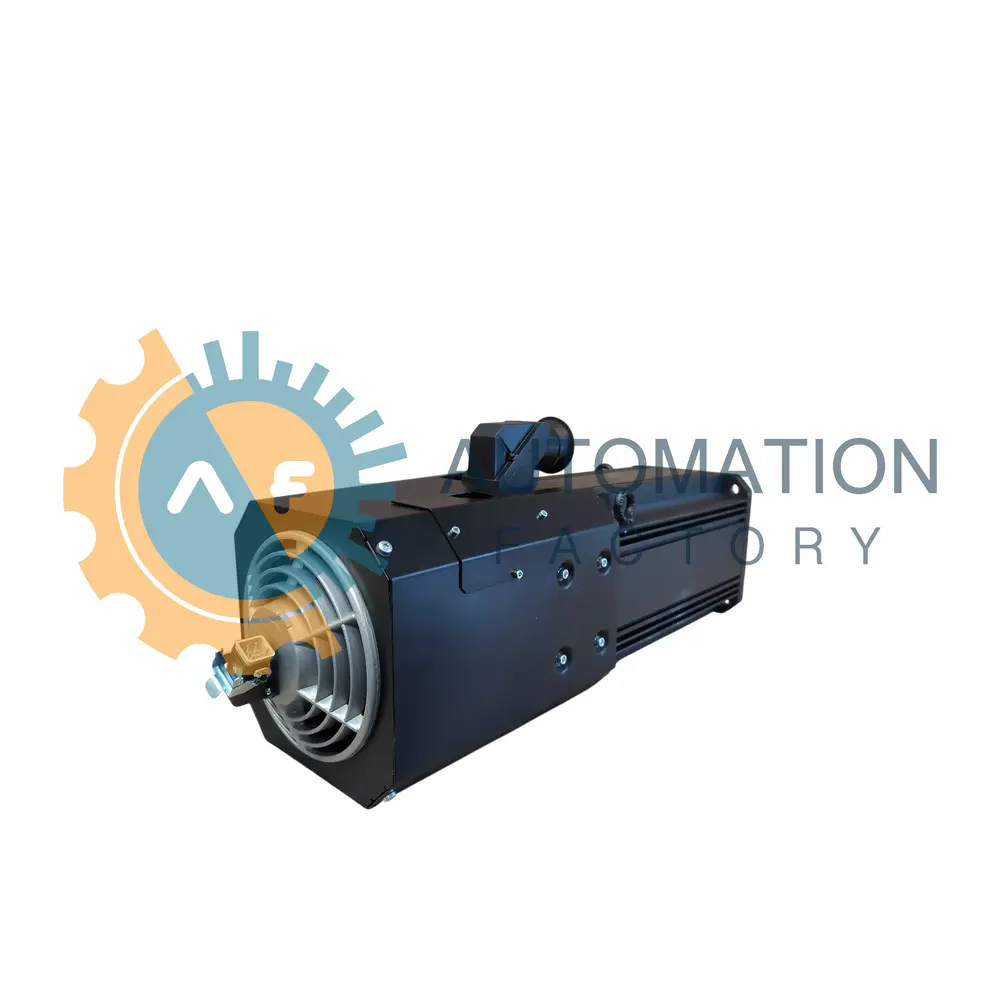

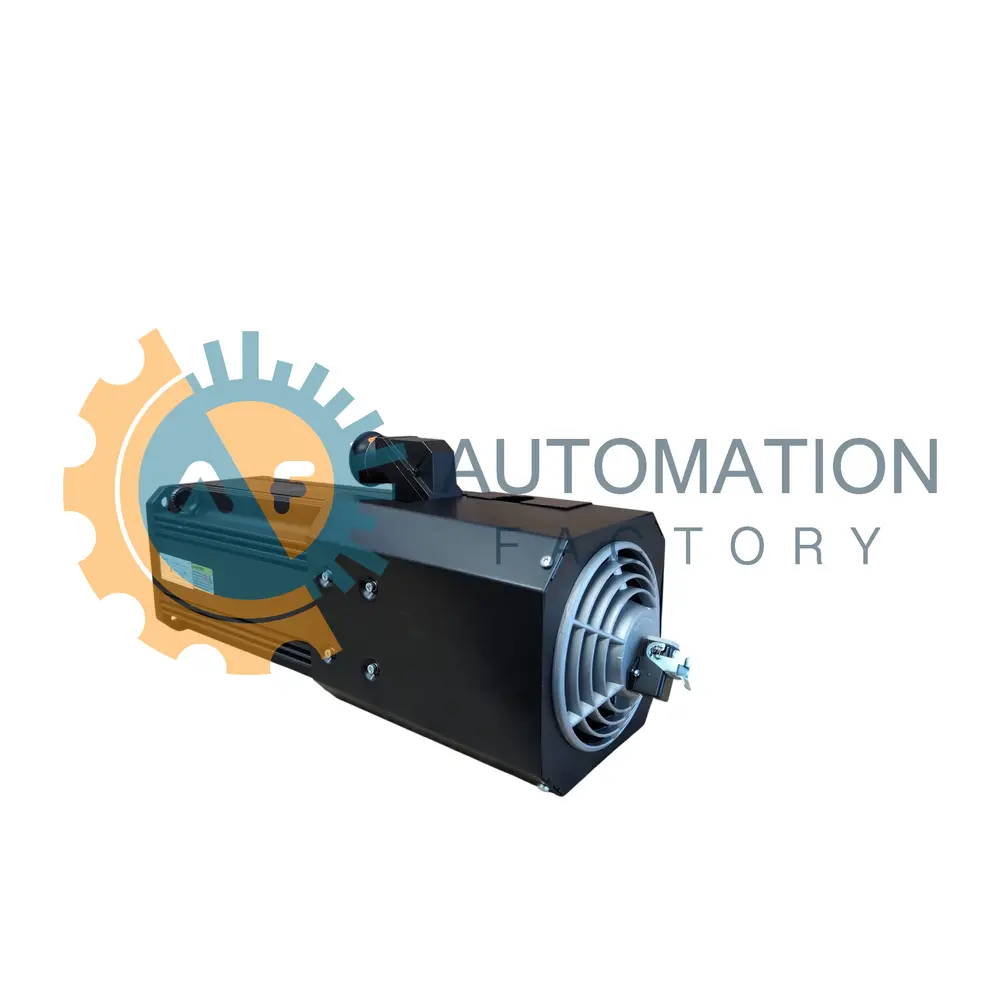

The MAD100D-0200-SA-M2-AH1-05-N1 spindle motor by Bosch Rexroth Indramat is part of the MAD Spindle Motor Series, boasting a maximum torque of 129.8 Nm. This motor delivers a maximum power of 23.17 kW with a maximum current of 52.7 A. It has a moment of inertia of 0.039 kgm² and operates at a rated speed of 2000 RPM.
Technical Specifications
Rated torque
54 Nm
54 Nm
Rated power
11.3 kW
11.3 kW
Rated current
27.2 A
27.2 A
Rated speed
2000 RPM
2000 RPM
Key Speed
1500
1500
Maximum speed
9,000 RPM
9,000 RPM
Maximum torque
129.8 Nm
129.8 Nm
Maximum Power
23.17 kW
23.17 kW
Maximum current
52.7 A
52.7 A
Moment of inertia
0.039 kgm²
0.039 kgm²
