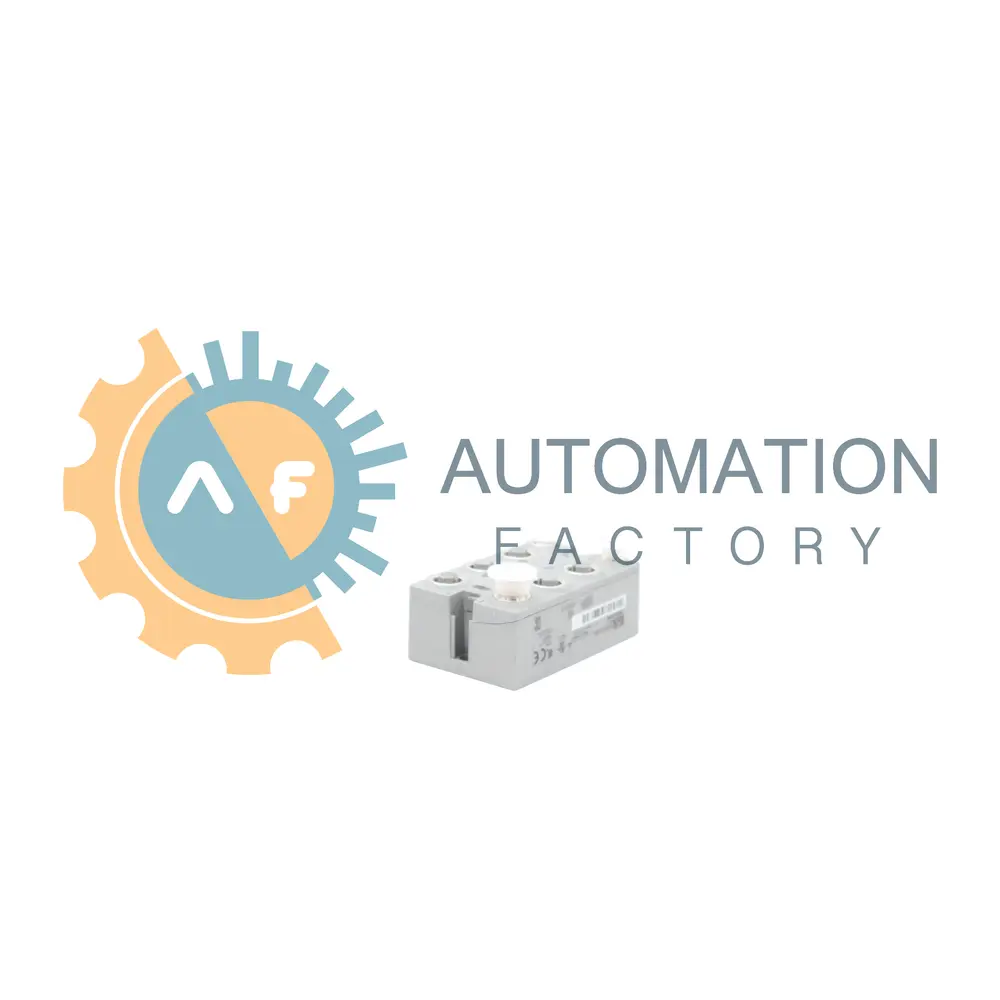

X67DC1198 by B & R Automation
Get a Quote for X67DC1198
Request a quote or call us now at 1-919-443-0207 !
In-Stock, Ships 3-5 Days
We respect your privacy. Your information is safe and will never be shared.
Secure Online
Checkout
Free Ground
Shipping
One Year
Warranty
Series X67 Analog Input Output Modules by B & R Automation
Technical Specifications
General Isolation Voltage
500 V between encoder and bus
500 V between encoder and bus
Power Supply And Sum Current
0.5 A
0.5 A
Status Indicators
I/O function per channel, power supply, bus function
I/O function per channel, power supply, bus function
Diagnostics
Yes, via status LED and software status
Yes, via status LED and software status
Connection Technology
X2X Link M12 B-coded, 2x M12 5-pin A-coded, 2x M12 12-pin A-coded, M8 4-pin
X2X Link M12 B-coded, 2x M12 5-pin A-coded, 2x M12 12-pin A-coded, M8 4-pin
Power Consumption Internal I/o
2.8 W
2.8 W
Power Consumption X2x Link
0.75 W
0.75 W
Approvals
CE, KC, EAC, UL cULus E115267, HazLoc cCSAus 244665
CE, KC, EAC, UL cULus E115267, HazLoc cCSAus 244665
Environmental Ratings
IP67, Ta = 0 - max. 60 degrees C, TUV 05 ATEX 7201X
IP67, Ta = 0 - max. 60 degrees C, TUV 05 ATEX 7201X
Nominal Voltage
24 VDC
24 VDC
Voltage Range
18 to 30 VDC
18 to 30 VDC
Max Power Consumption
12 W for connected sensors/actuators
12 W for connected sensors/actuators
Encoder Inputs
2, 5 V symmetrical, 32-bit count depth, max. transfer rate 1 MBit/s for SSI; max. input frequency 250 kHz for ABR
2, 5 V symmetrical, 32-bit count depth, max. transfer rate 1 MBit/s for SSI; max. input frequency 250 kHz for ABR
Digital Inputs
Up to 6 digital inputs, 5 VDC or 24 VDC, configurable as input or output
Up to 6 digital inputs, 5 VDC or 24 VDC, configurable as input or output
Digital Outputs
Up to 8 digital outputs, 24 VDC, 0.1 A per output, 0.8 A total, short-circuit protected
Up to 8 digital outputs, 24 VDC, 0.1 A per output, 0.8 A total, short-circuit protected
