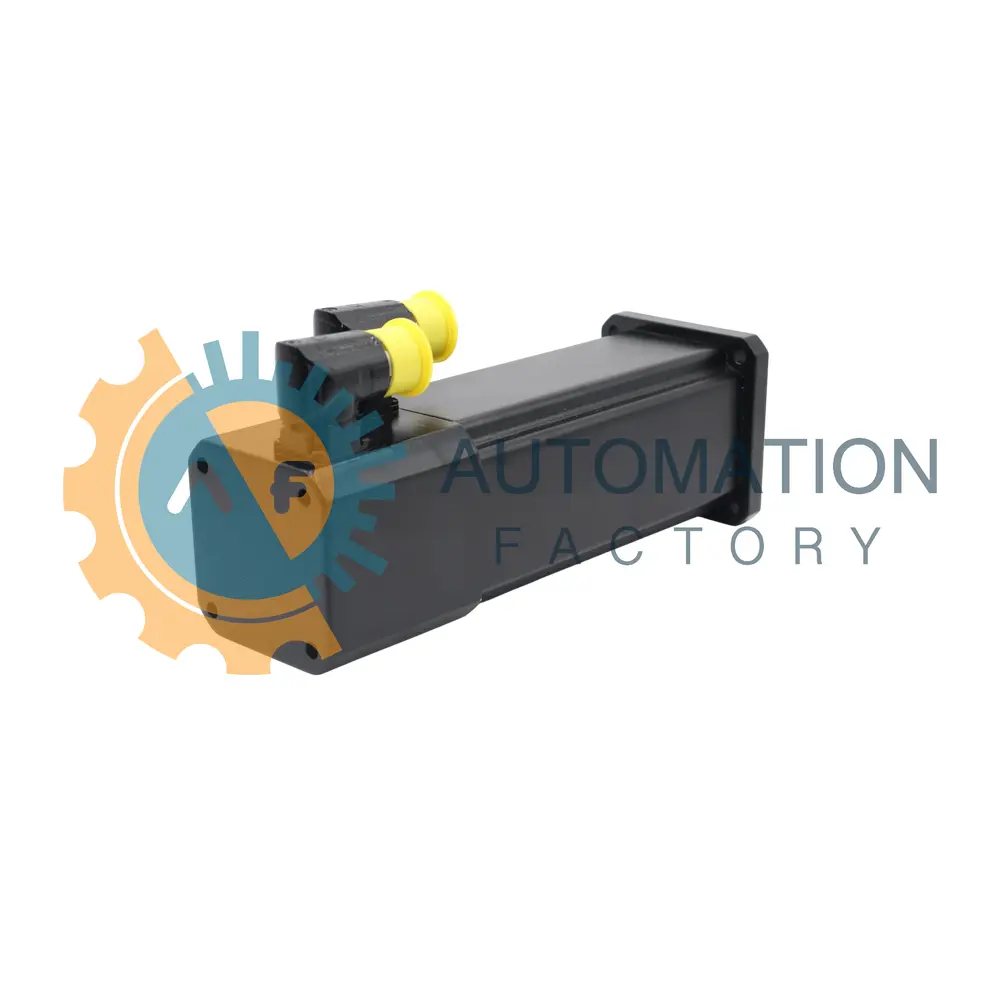

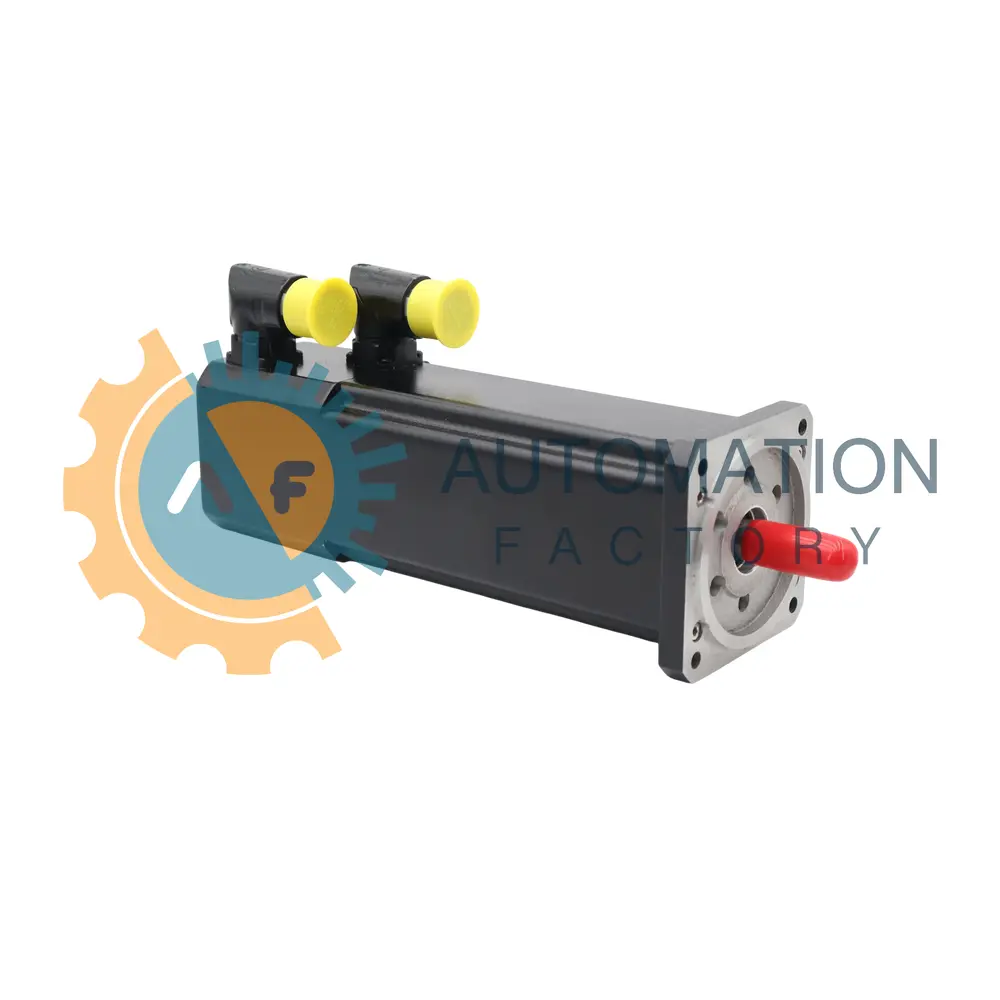

The B & R Automation 8LSA35.EB060D000-0 is part of the advanced 8LS Synchronous Motor Series, offering a nominal power output of 3.45 kW. It operates with a nominal speed of 6000 rpm and uses a natural convection cooling method, as well as an IP65 protection class. Equipped with an angled swivel connector, the motor weighs 4.3 kg and runs on 400 V.
Technical Specifications
Motor Type
Synchronous
Synchronous
Number Of Pole Pairs
2 pairs
2 pairs
Nominal Speed
6000 rpm
6000 rpm
Stall Torque
2.300 Nm
2.300 Nm
Connector
Angled (swivel)
Angled (swivel)
Centering Diameter
80 mm
80 mm
Voltage
400 V
400 V
Current
Nominal 7.7 A, Peak 19.2 A
Nominal 7.7 A, Peak 19.2 A
Power Output
3.45 kW
3.45 kW
Weight
4.3 kg
4.3 kg
Protection Class
IP65
IP65
Cooling Method
Natural Convection
Natural Convection
