8LSA35.EA030D000-0 by B & R Automation
Get a Quote for 8LSA35.EA030D000-0
Request a quote or call us now at 1-919-443-0207!
We respect your privacy. Your information is safe and will never be shared.
Secure Online
Checkout
Free Ground
Shipping
One Year
Warranty
Product Description

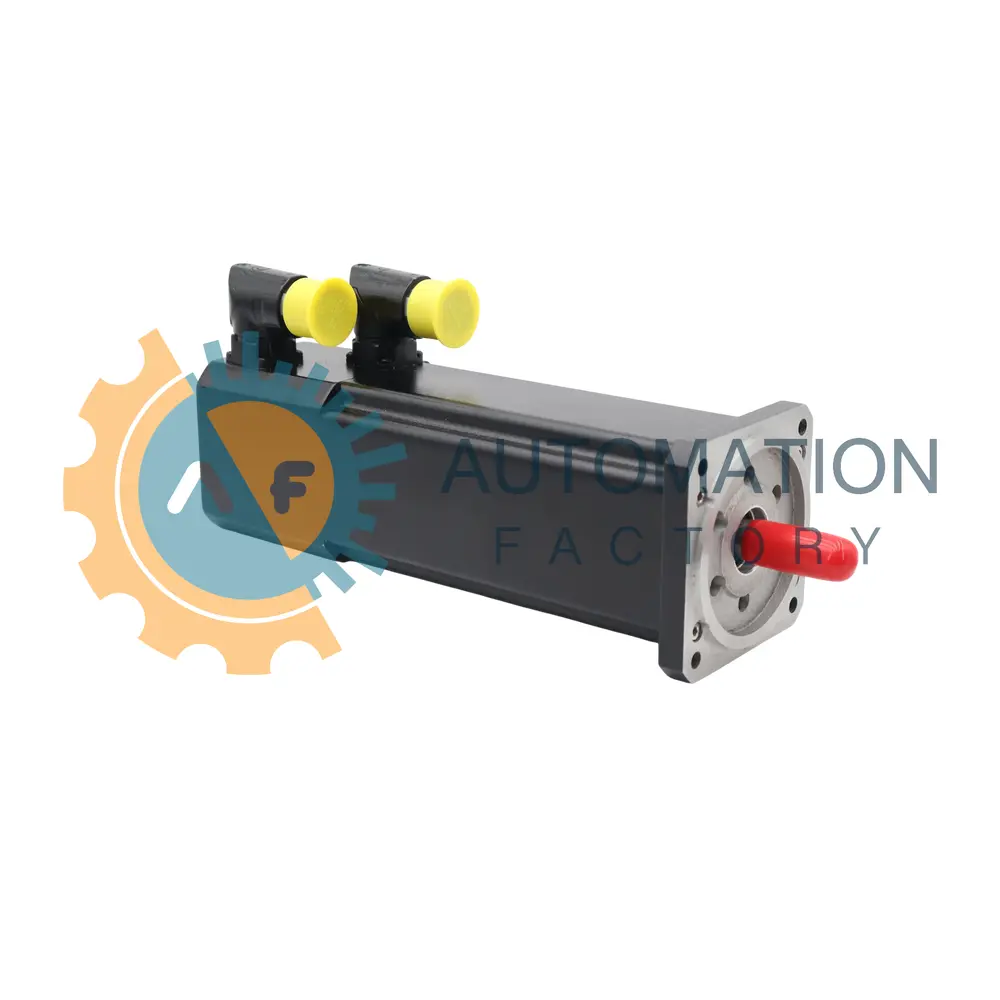

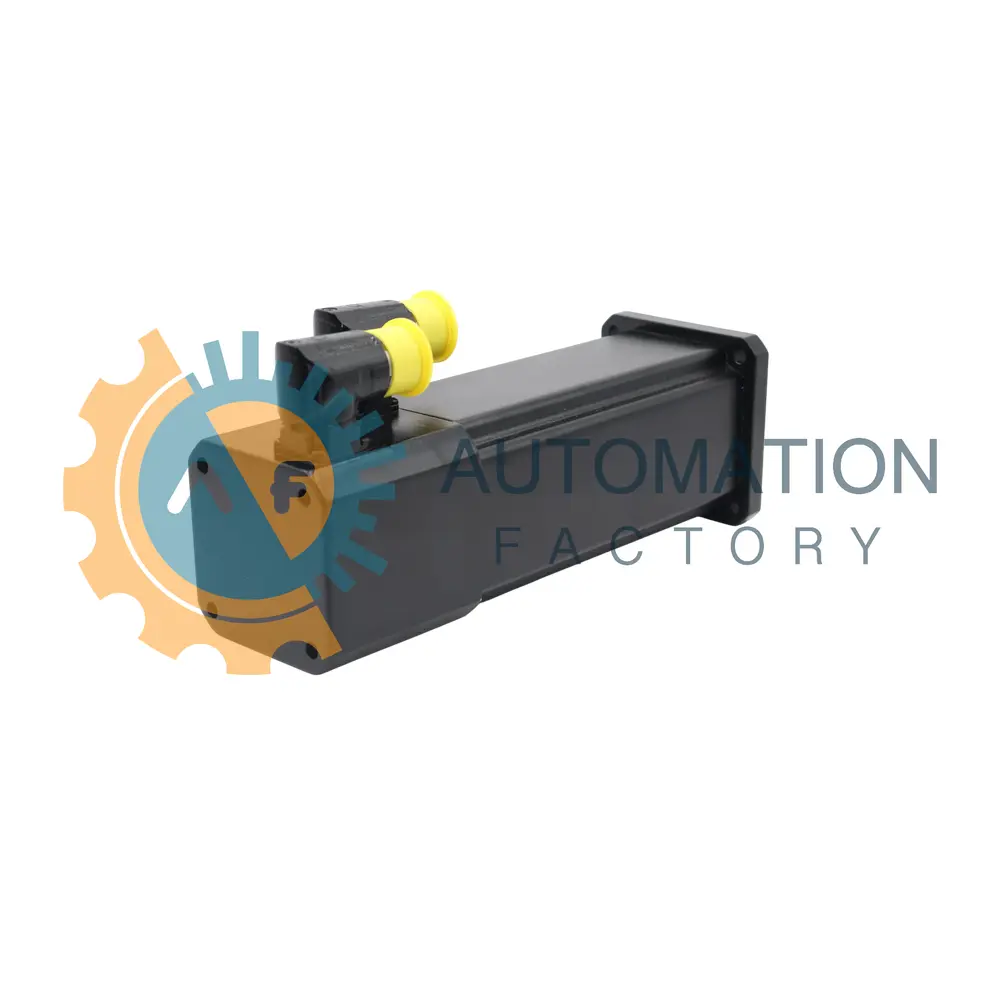

The B & R Automation 8LSA35.EA030D000-0 is a high-efficiency synchronous motor from the 8LS Synchronous Motor Series. Designed to operate within an operational voltage of 400 V, it features a nominal current of 4.1 A and delivers a nominal speed of 3000 rpm. Equipped with two SpeedTEC round connectors for its electrical connection, it supports various configurations. The motor's stall torque is a solid 2.300 Nm, and it is rated IP67 for excellent protection. Operating smoothly with a temperature range from -20 to +40 degrees C, this motor is well-suited for diverse industrial applications.
Technical Specifications
| Type | Synchronous motor |
|---|---|
| Number Of Pole Pairs | 2 pairs |
| Nominal Speed | 3000 rpm |
| Stall Torque | 2.300 Nm |
| Connection Type | Angled connector (swivel) |
| Centering Diameter | 80 mm |
| Fit Tolerance | j6 A fit |
| Control System | ACOPOS servo drive or ACOPOSmulti system |
| Electrical Connection | Two SpeedTEC round connectors |
| Operational Voltage | 400 V |
| Nominal Current | 4.1 A |
| Protection Class | IP67 |
| Temperature Range | -20 to +40 degrees C |
