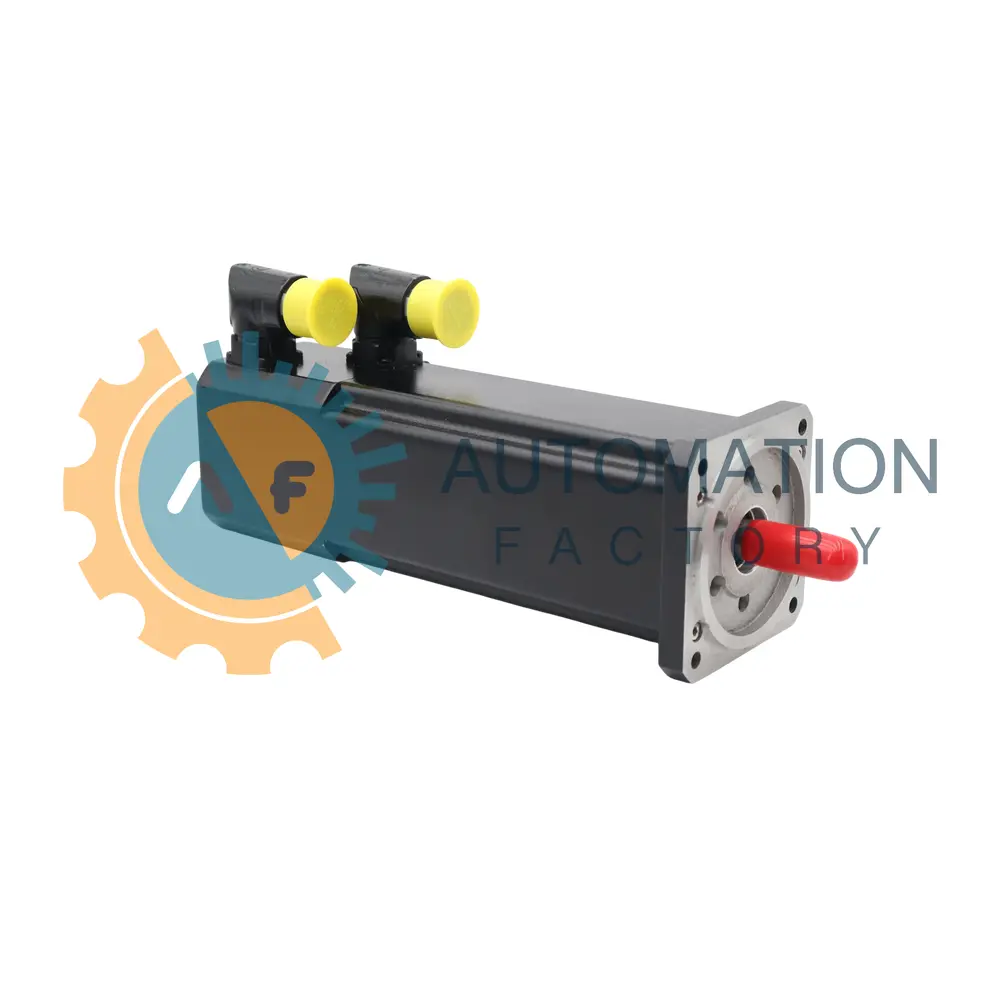

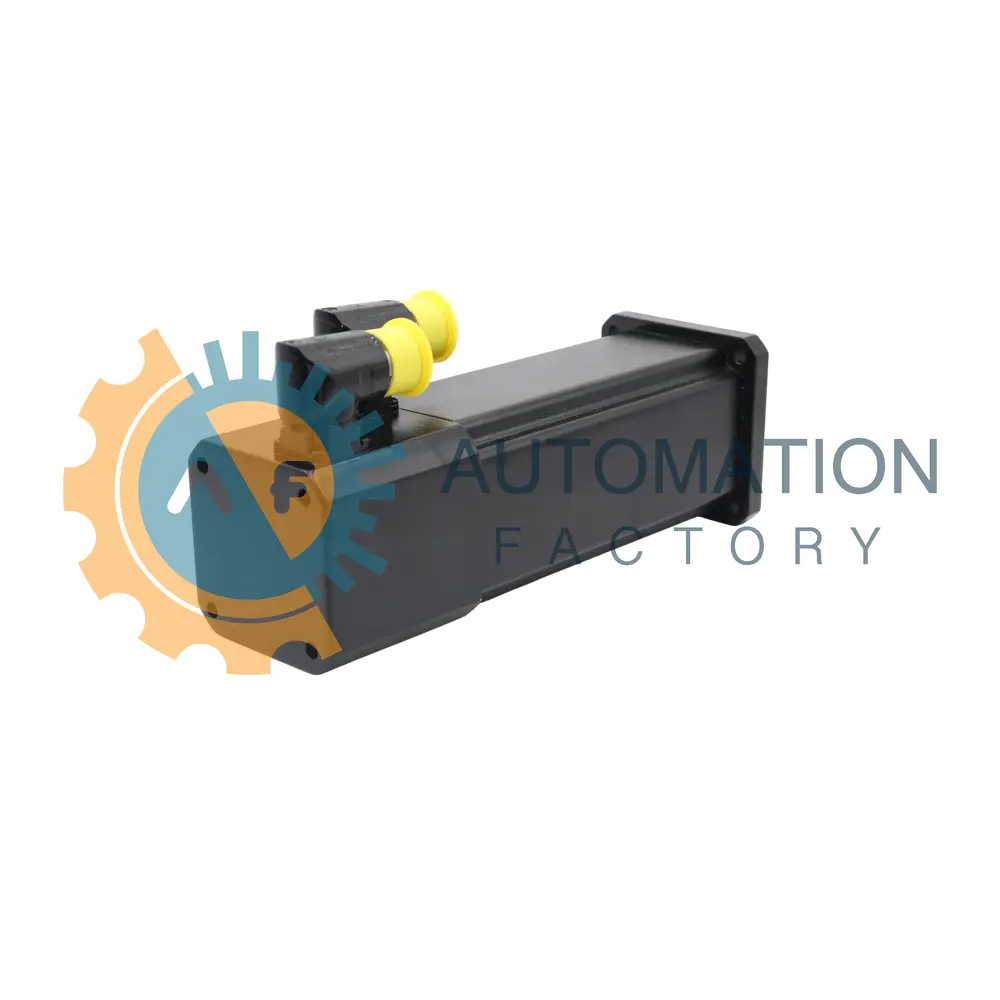

The 8LSA35.E3060D000-0 is a motor manufactured by B & R Automation. Part of the 8LS Synchronous Motor Series, it features a Heidenhain EnDat feedback encoder. Boasting a peak torque of 32.5 Nm, the motor is rated at 6000 RPM. It has a protection class of IP64 and weighs 13 Kilograms.
Technical Specifications
Voltage
400V
400V
Rated Speed
6000 RPM
6000 RPM
Motor Type
Brushless Servo Motor
Brushless Servo Motor
Continuous Stall Torque
11.8 Nm
11.8 Nm
Peak Torque
32.5 Nm
32.5 Nm
Rated Current
11.2 A
11.2 A
Rated Torque
9.3 Nm
9.3 Nm
Power
8.6 kW
8.6 kW
Inertia
0.00088 kg*m^2
0.00088 kg*m^2
Cooling
Natural Convection
Natural Convection
Rated Frequency
400 Hz
400 Hz
Weight
13 kg
13 kg
Length
280 mm
280 mm
Feedback
Heidenhain EnDat Encoder
Heidenhain EnDat Encoder
Protection Class
IP64
IP64
