Product Description

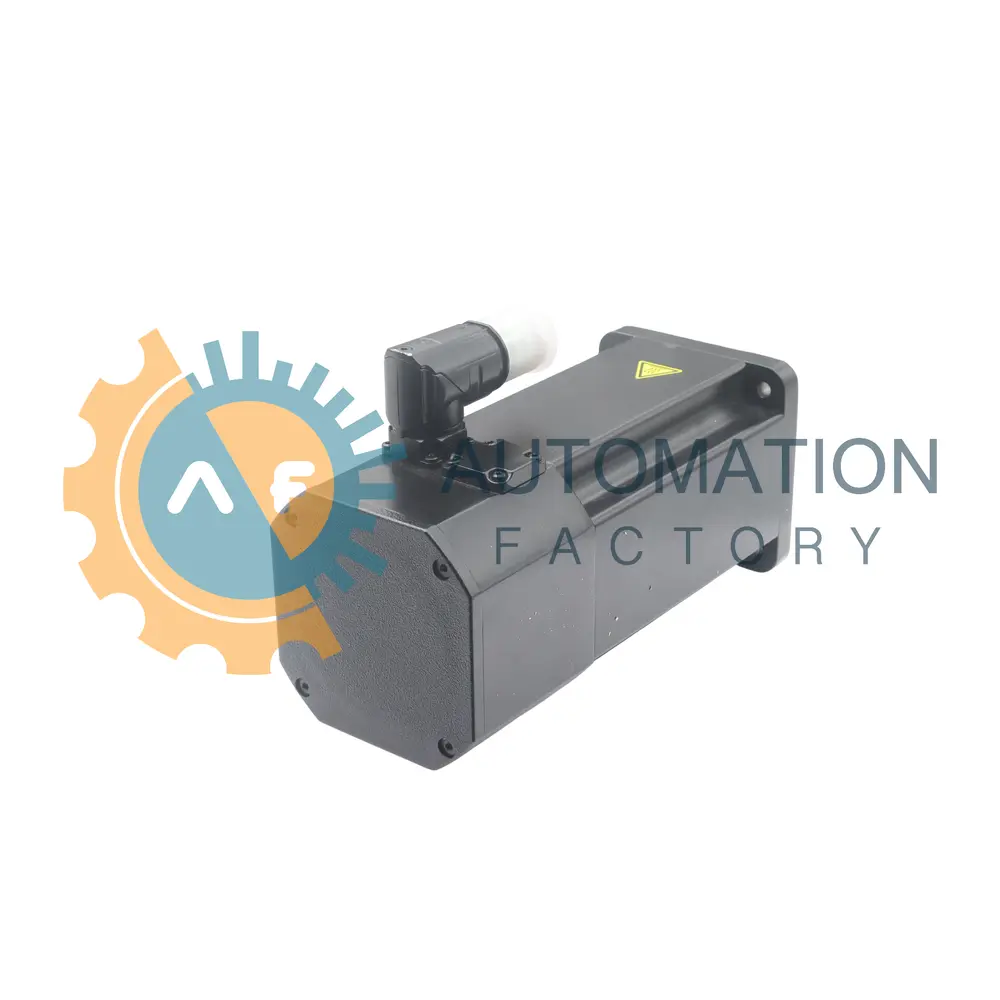

The 8LSA35.DB030S100-3 synchronous motor offers a nominal power of 660 watts, a nominal torque of 2.1 Nm, and a maximum speed of 9000 rpm. Part of the 8LS Synchronous Motor Series from B & R Automation, it features a maximum current of 6.8 amps and a torque constant of 1.45 Nm per amp.
Technical Specifications
| Nominal Speed [rpm] | 3000 |
|---|---|
| Number Of Pole Pairs | 4 |
| Nominal Torque [nm] | 2.1 |
| Nominal Power [w] | 660 |
| Nominal Current [a] | 1.4 |
| Stall Torque [nm] | 2.3 |
| Stall Current [a] | 1.6 |
| Maximum Torque [nm] | 9.2 |
| Maximum Current [a] | 6.8 |
| Maximum Speed [rpm] | 9000 |
| Torque Constant [nm/a] | 1.45 |
| Voltage Constant [v/1000 Rpm] | 87.96 |
| Stator Resistance [?] | 12.22 |
| Stator Inductance [mh] | 63 |
| Electrical Time Constant [ms] | 5.2 |
